Pool Pump Replacement: Installation & Repair

The pump is, without a doubt, the heart of the oasis that is your pool. It is in charge of water circulation and filtration, ensuring that chemicals are distributed and that the water remains crystal clear. A pump failure not only clouds the water in a matter of hours, but a poor power calculation not only ruins the filter but also skyrockets the electric bill and can cause costly damage to the rest of the system. At Servinmosol we combine hydraulic engineering and technical expertise to guarantee that your pool motor runs with clockwork precision.

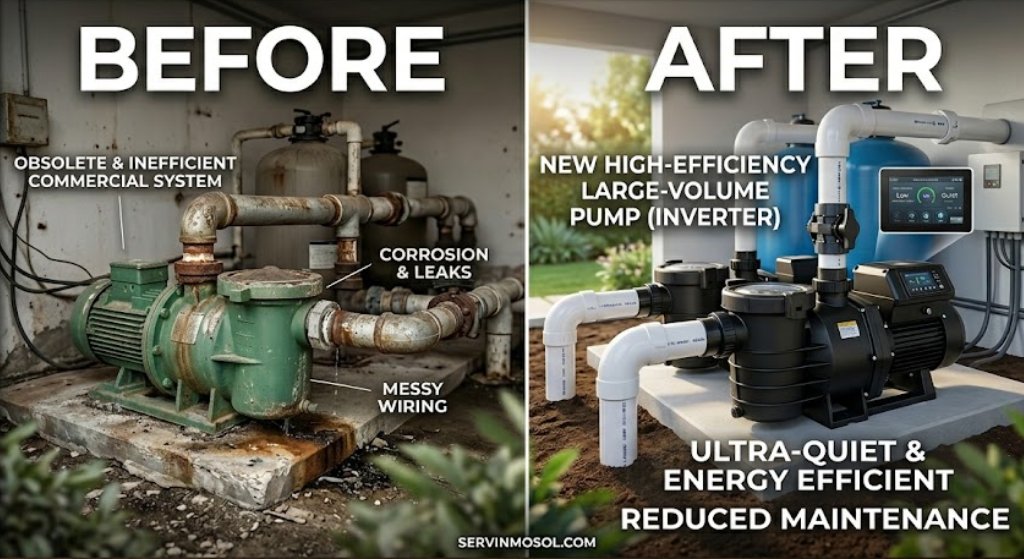

Professional installation of a modern high-efficiency pool pump connected to a filtration system

When is it strictly necessary to replace or repair the pump?

Before proceeding with the replacement, it is vital to diagnose whether the pump has reached the end of its useful life or if it needs repair. A pump does not break "suddenly"; it always gives warnings. The most common clinical symptoms we treat at Servinmosol include:

Excessive noise, squeaks, or vibrations:
These generally indicate worn bearings or motor problems. If the noise resembles "crushing stones," you are experiencing cavitation (the pump is not receiving enough water and is boiling inside). If it sounds like a high-pitched buzz, the capacitor or the winding is about to burn out.
Water leaks under the motor:
If you see water under the pump, the mechanical seal may be broken, which corrodes the motor. Salt or chlorinated water penetrates the motor shaft, rapidly oxidizing the internal parts and causing an imminent short circuit.
Electrical differential tripping (Current leakage):
If the power trips (at the electrical panel) when turning on the treatment plant, it means there is a ground fault. The water has reached the copper winding of the motor. In these cases, replacement is mandatory for strict safety reasons.
The pump starts but does not move water:
This may indicate a severe obstruction in the impeller (turbine) or a massive air intake in the system (air intake in the skimmers or cracked pipes).
Age and loss of efficiency:
If your pump is more than 8-10 years old and begins to fail, replacement with a modern, high-efficiency model is usually more cost-effective than repair. Old motors lose power, forcing you to keep the treatment plant running for many more hours to achieve the same result.

Hydraulic Calculation: Why NOT just any pump will work

Buying the cheapest or the largest pump online is the most costly mistake many homeowners make. The pump and the filter must be a perfect match.

At Servinmosol we analyze the volume of your pool, the diameter of the pipes (50mm or 63mm), and the capacity of your filter. If we install a 1.5 HP pump on a small filter, the pressure will push the dirt back into the pool (breaking the internal filter laterals). If we install a very small pump, the water will not be renewed, causing the appearance of algae. We size the exact motor to guarantee a perfect and safe filtration cycle.

⚠️ Important Safety Note

Each manufacturer (AstralPool, Espa, Hayward, etc.) has different power curves. Installing a pump that is too powerful for your filter can break it, and an underpowered one will not clean the water.

Do not take risks. At Servinmosol we calculate the exact power your pool needs to guarantee maximum energy efficiency and cleanliness.

Request a Diagnosis or Quote

Professional Replacement Process

Although the process may seem simple, handling electrical components near water requires strict safety measures and technical knowledge. Our protocol includes:

1. Electrical Safety and Drainage

Professional electrician's hands using a digital multimeter in the pool's electrical panel

The first step is the total disconnection of the electrical panel. Depending on the location of the pump (if it is below the water level), it is necessary to close valves or partially drain the system to avoid flooding in the filtration house. We verify with multimeters that there is no residual voltage before handling the cables.

2. Hydraulic Disconnection and Adaptation

Plumber applying special PVC glue to a new pipe next to the pool pump

We disconnect the suction and return pipes. In the replacement, we use high-pressure PVC fittings and valves, and we seal the joints with special glues for humid environments, ensuring a perfect and long-lasting fit without leaks, even if it is necessary to adapt the plumbing on-site to the new pump dimensions. New pumps rarely have the exact dimensions as the old ones, so we remanufacture the manifolds if necessary.

3. Installation, Electrical Panel, and Priming

Close-up detail of the filter pressure gauge indicating correct water flow after installing the pump

We install the new unit ensuring its leveling to avoid vibrations. We perform the electrical connection and readjust the electrical panel with precise motor circuit breakers for the new power curve. Finally, we prime the pump by filling the pre-filter with water and proceed to start it up, checking the pressure gauges and verifying that there are no air bubbles or micro-leaks in the joints.

The Future: Variable Speed Pumps (Inverter)

As pool maintenance experts, we highly recommend considering variable speed pumps. Although they represent a higher initial investment, these pumps automatically adjust their revolutions to the actual needs of the pool.

The result? Radical Consumption Reduction

These pumps reduce electricity consumption by up to 70% and are practically inaudible, making them ideal for pools located near resting areas, terraces, or chill-out zones. The return on investment (ROI) pays for itself in the electricity bills of just 2 summer seasons.

Changing the pump? It is the ideal time to renew your filtration

Take advantage of the intervention to update your filtration system and obtain even purer and more crystal-clear water, reducing the consumption of chemicals and improving the overall efficiency of the system.

See Change from Sand to Filter Glass
